Camera technology for scientific research and inspections

Specialist for Laser Photonics & Nanotechnology

Tucsen – A global camera company. Designing and manufacturing in Asia. Consistently delivering value.

CMOS
sCMOS
Smart

Cooled CMOS
HDMI
USB2.0
USB3.0

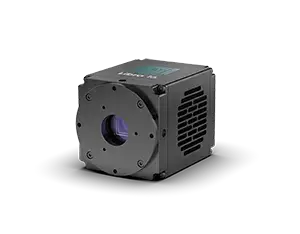

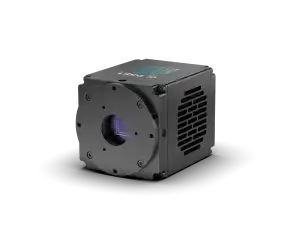

Libra 16

Large Format Cooled CMOS Camera

16mm （1.0”）
7.52 μm x 7.52 μm
1500 x 1500
92% QE / 1.0e⁻
USB 3.0

Libra 22

Large Format Cooled CMOS Camera

22mm （1.4”）
7.52 μm x 7.52 μm
2048 x 2048
92% QE / 1.0e⁻
USB 3.0

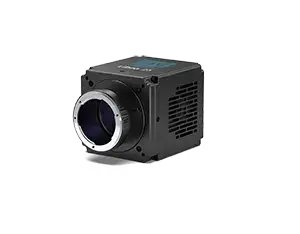

Libra 25

Large Format Cooled CMOS Camera

25mm （1.6”）
7.52 μm x 7.52 μm
2600 x 2048
92% QE / 1.0 e⁻
USB 3.0

Libra 3405M

Global Shutter Mono sCMOS Camera

75% @ 540 nm
10.9 mm （2/3″）
3.4 μm × 3.4 μm
164 fps @ 8 bit
10G GigE & Trigger

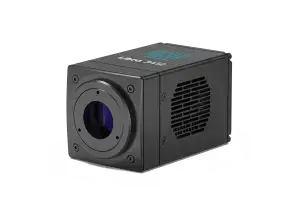

Libra 3412M

Global Shutter Mono sCMOS Camera

75% @ 540 nm
17.4 mm （1.1″）
3.4 μm × 3.4 μm
98 fps @ 8bit
10G GigE & Trigger

Libra 3405C

Global Shutter AI Color sCMOS Camera

AI Color Correction
10.9 mm （2/3″）
3.4 μm × 3.4 μm
164 fps @ 8 bit
10G GigE & Trigger

Libra 3412C

Global Shutter AI Color sCMOS Camera

AI Color Correction
17.4 mm （1.1″）
3.4 μm × 3.4 μm
98 fps @ 8 bit
10G GigE & Trigger

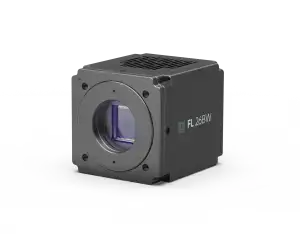

FL 26BW

Long Exposure Cooled CMOS Camera

28.3 mm
6244 （H） × 4168 (V)
3.76 μm × 3.76 μm
< 0.0005 e-/p/s
-25℃ @ 22℃

FL 9BW

Long Exposure Cooled CMOS Camera

15.96 mm (1″)
3000 （H） × 3000 (V)
3.76 μm x 3.76 μm
< 0.0005 e-/p/s
-25℃ @ 22℃

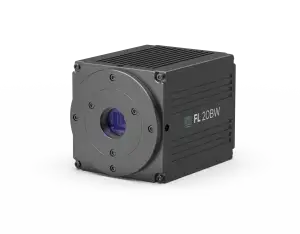

FL 20BW

Mono Cooled CMOS Camera for Low Magnification Fluorescence Imaging

15.86 mm Diagonal
5472 (H) x 3648 (V)
2.4 μm x 2.4 μm
16 fps @ 20 MP
USB3.0

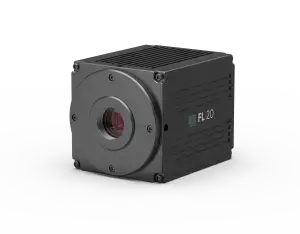

FL 20

Color Cooled CMOS Camera for Low Magnification Fluorescence Imaging.

15.86 mm Diagonal
5472 (H) x 3648 (V)
2.4 μm x 2.4 μm
14 fps @ 20 MP
USB3.0

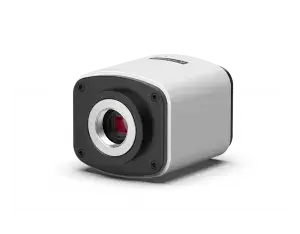

TrueChrome PDAF

HDMI Autofocus Microscope Camera

5.28mm (1/3″)
2886 (H) x 1620 (V)
1.6 μm x 1.6 μm
60 fps @ HDMI
50 fps @ USB 2.0

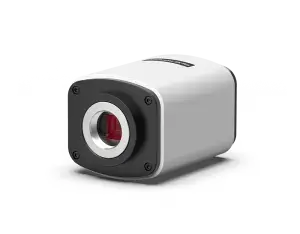

TrueChrome 4K Pro

4K HDMI and USB3.0 Microscope Camera

13.33mm Diagonal FOV
3840 × 2160 Resolution
2.9 μm x 2.9 μm Pixel Size
30 fps @ HDMI, 30 fps @ USB 3.0
HDMI, USB3.0, USB2.0, LAN

TrueChrome 4K WiFi

4K HDMI and USB3.0 Microscope Camera

13.33mm Diagonal FOV
3840 × 2160 Resolution
2.9 μm x 2.9 μm Pixel Size
30 fps@HDMI, 30 fps@USB 3.0
HDMI, USB3.0, USB2.0, LAN，Wi-Fi

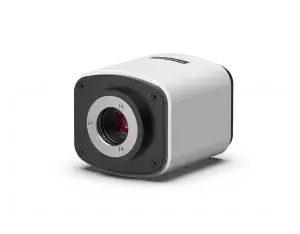

TrueChrome Metrics

1080P HDMI Microscope Camera

6.46 mm Diagonal FOV
1920 x 1080 Resolution
2.9 μm x 2.9 μm Pixel Size
25 fps @ HDMI, 30 fps @ USB 2.0
HDMI, USB 2.0, SD card

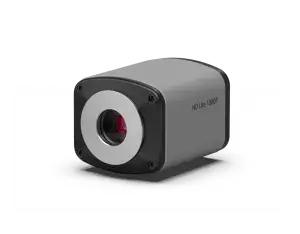

HD Lite

1080P HDMI Microscope Camera

1/2.8″(6.54 mm )
2592 ( H) x 1944 (V)
2.0 μm x 2.0 μm Pixel Size
30 fps @ HDMI, 15 fps @ USB 2.0
HDMI, USB2.0, SD card

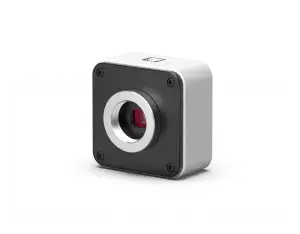

GT 12

12MP USB2.0 CMOS Camera with Frame Rate Greatly Improved

7.77mm Diagonal FOV
4000 x 3000 Resolution
1.34μm x 1.34μm Pixel Size
15fps@12MP
USB2.0

GT 5.0

5MP USB2.0 CMOS Camera with Frame Rate Greatly Improved

6.52mm Diagonal FOV
2560 x 1920 Resolution
2.0μm x 2.0μm Pixel Size
29fps@5MP
USB2.0

GT 2.0

2MP USB2.0 CMOS Camera with Frame Rate Greatly Improved

6.23mm Diagonal FOV
1920 x 1080 Resolution
2.8μm x 2.8μm Pixel Size
30fps@2MP
USB2.0

FL 20BW

Mono Cooled CMOS Camera for Low Magnification Fluorescence Imaging

15.86 mm Diagonal
5472 (H) x 3648 (V)
2.4 μm x 2.4 μm
16 fps @ 20 MP
USB3.0

FL 20

Color Cooled CMOS Camera for Low Magnification Fluorescence Imaging

15.86 mm Diagonal
5472 (H) x 3648 (V)
2.4 μm x 2.4 μm
14 fps @ 20 MP
USB3.0

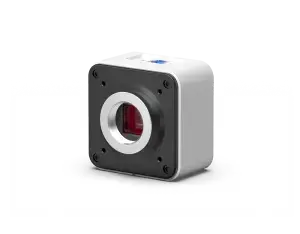

MIchrome 5 Pro

5MP Global Shutter CMOS Camera with Live Stitching and Live EDF

11.1mm Diagonal FOV
2448 (H) x 2048 (V)
3.45μm x 3.45μm
36fps@5MP
USB3.0

MIchrome 20

20MP USB3.0 CMOS Camera with Live Stitching and Live EDF

15.86mm Diagonal FOV
5472 x 3648 Resolution
2.4μm x 2.4μm Pixel Size
15fps@20MP
USB3.0

MIchrome 16

16MP USB3.0 CMOS Camera with Live Stitching and Live EDF

7.77mm Diagonal FOV
4608 x 3456 Resolution
1.34μm x 1.34μm Pixel Size
12fps@16MP
USB3.0

MIchrome 6

6MP USB3.0 CMOS Camera with Live Stitching and Live EDF

8.92mm Diagonal FOV
3072 x 2048 Resolution
2.4μmx2.4μm Pixel Size
41fps@6MP
USB3.0

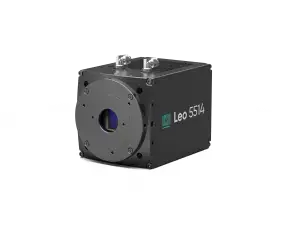

Leo 5514 Pro

High Throughput Area Camera

30.5mm Diagonal
83% QE / 2.0e⁻ / 5.5 µm
Global Shutter
670 fps@14MP
100G CoF interface

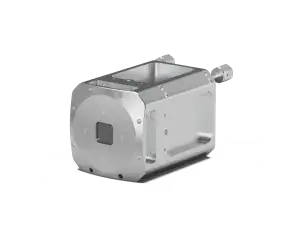

Dhyana XV

Vacuum-compatable in-vaccum high-speed BSI sCMOS cameras for soft X-ray and EUV direct detection

Reliable Invacuum Design
~100% Peak QE @ 80-1000 eV
10⁻⁶ Pa Vacuum Compatbility
2Kx2K, 4Kx4K, 6Kx6K Resolution
USB 3.0

Dhyana XF

Vacuum-compatable open-front high-speed BSI sCMOS cameras for soft X-ray and EUV direct detection

Standard CF Camera Flanges
~100% Peak QE @ 80-1000 eV
10⁻⁷ Pa Vacuum compatbility
2Kx2K, 4Kx4K, 6Kx6K Resolution
CameraLink & USB 3.0

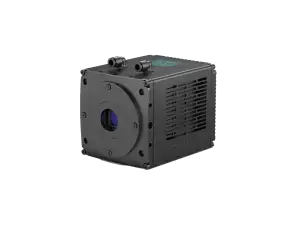

Leo 3249

High resolution, high speed, large field of view imaging with the benefits of Global Shutter

Global Shutter
3.2 μm pixels
7000 (H) x 7000 (V)
31.7mm Diagonal
71 fps

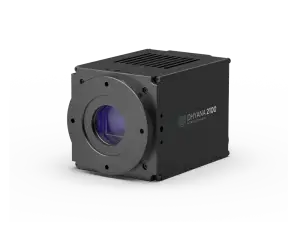

Dhyana 2100

Maximising Speed & Resolution in sCMOS

450 fps @ 21MP
Global Shutter
29.5 mm Diagonal
5120 (H) x 4096 (V)
Liquid or Air Cooling

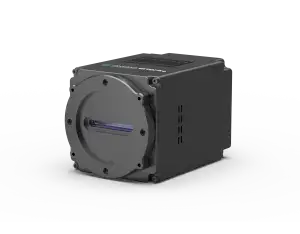

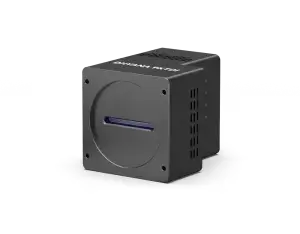

Dhyana 9KTDI Pro

BSI TDI sCMOS camera designed for low light and high speed inspection

82% QE @ 550 nm
5 µm x 5 µm
9072 ( H ) x 256 ( V )
600 kHz @ 9K
CoaxPress-Over-Fiber 2 x QSFP+

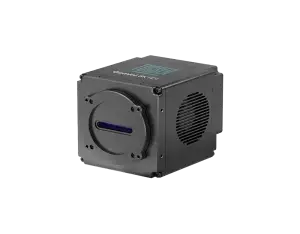

Gemini 8KTDI

High Speed TDI-sCMOS Camera

180-1100nm
256 stages TDI
1 MHz@8 K
100G COF interface
Air & Liquid Cooling

Dhyana 9KTDI

BSI TDI sCMOS camera designed for low light and high speed inspection

82% QE @ 550 nm
5 μm x 5 μm
9072 Resolution
510 kHz @ 9K
CoaXPress2.0

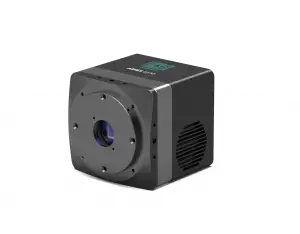

Aries 6506

Ultimate Sensitivity sCMOS Camera

95% Peak QE
6.5 μm x 6.5 μm
22 mm Diagonal FOV
200 fps @ Full Resolution
0.7e- Readout Noise

Aries 6510

Ultimate Sensitivity sCMOS Camera

95% Peak QE
6.5 μm x 6.5 μm
29.4 mm Diagonal FOV
150 fps @ Full Resolution
0.7 e- Readout Noise

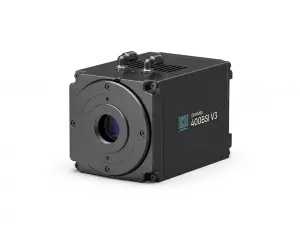

Dhyana 400BSI V3

BSI sCMOS camera designed to be lighter and to use less power for easier integration into small spaces

95% QE @ 600 nm
6.5 μm x 6.5 μm
2048 (H) x 2048 (V)
100 fps @ 4.2 MP
CameraLink & USB3.0

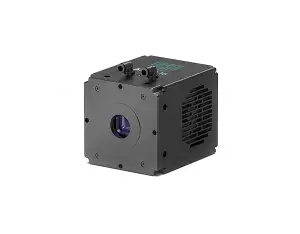

Aries 16

Ultimate Sensitivity sCMOS

16 μm x 16 μm pixels
0.9 e- readout noise
90 % Peak QE
800 (H) x 600 (V)
CameraLink & USB3.0

Dhyana 95 V2

BSI sCMOS camera delivering the highest sensitivity for low light applications

95 % @ 560 nm
11 μm x 11 μm
2048 (H) x 2048 (V)
48 fps @ 12-bit
CameraLink & USB3.0

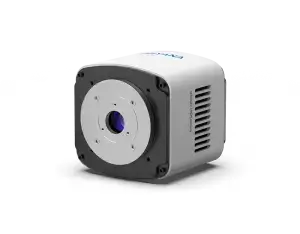

Dhyana 400D

4MP mono FSI sCMOS camera with 72% Peak QE high sensitivity

72 % QE @ 595 nm
6.5 μm x 6.5 μm
2048（H） x 2040 (V)
35 fps @ 16 bit
USB3.0

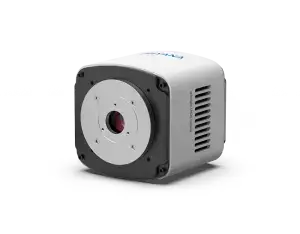

Dhyana 400DC

4MP color FSI sCMOS camera for low light imaging

Color sCMOS
6.5 μm x 6.5 μm
2048 (H) x 2048 (V)
22 fps @ 8 bit, 16 fps @ 16 bit
USB3.0

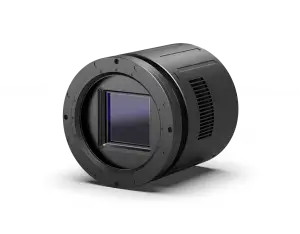

Dhyana 6060BSI

Ultra-large BSI sCMOS camera with CXP high-speed interface

95 % QE @ 580 nm
10 μm x 10 μm
6144 (H) x 6144 (V)
26.4 fps @ 12-bit
CoaXPress 2.0

Dhyana 4040BSI

Large format BSI sCMOS camera with cameraLink high-speed interface

90% QE @550nm
9 μm x 9 μm
4096 (H) x 4096 (V)
16.5 fps @ CL, 9.7 fps @ USB3.0
CameraLink & USB3.0

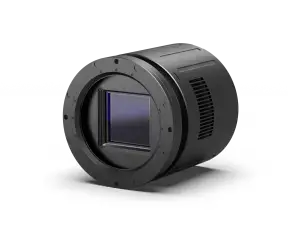

Dhyana 6060

Ultra-large FSI sCMOS camera with CXP high-speed interface

72 % @550 nm
10 μm x 10 μm
6144 (H) x 6144 (V)
44 fps @ 12-bit
CoaXPress 2.0

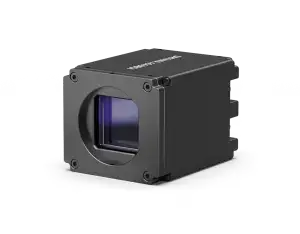

Dhyana 4040

Large FSI sCMOS camera with cameraLink high-speed interface

74% QE @ 600nm
9 μm x 9 μm
4096 (H) x 4096 (V)
16.5 fps @ CL, 9.7 fps @ USB3.0
CameraLink & USB3.0

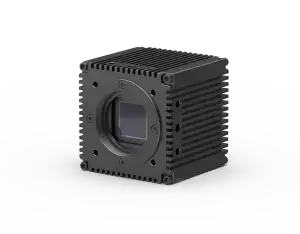

Dhyana 401A-G

Compact 11 μm sCMOS designed with instrument integration in mind

32mm Diameter
11μm x 11μm
2048 (H) x 2048 (V)
90,000e- Full Well
GenICam Standard

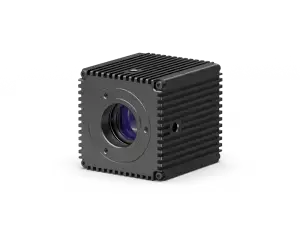

Dhyana 401D

Compact 6.5μm sCMOS designed with instrument integration in mind

18.8 mm Diagonal FOV
6.5 μm x 6.5 μm Pixel Size
2048 x 2048 Resolution
40 fps @ 16 bit, 45 fps @ 8 bit
USB3.0 Data Interface

Dhyana 201D

Compact 6.5 μm sCMOS designed with instrument integration in mind

15.3 mm Diagonal
6.5 μm x 6.5 μm
2048 (H) x1152 (V)
70 fps @ 16 bit, 80 fps @ 8 bit
USB3.0

Leo 3243 Pro

High Throughput Area Camera

31mm Diagonal
3.2 μm pixels
8192 x 5232
100 fps @ 43MP
100G CoF interface

3D Measurment

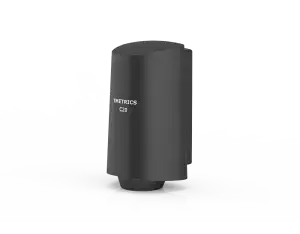

Tmetrics C20

Smart 3D microscope camera for metallographic or stereo microscopes

8mm Diagonal FOV
1920 x 1080 Resolution
3.75μm×3.75μm Pixel Size
60fps@2MP Frame Rate
HDMI Data interface

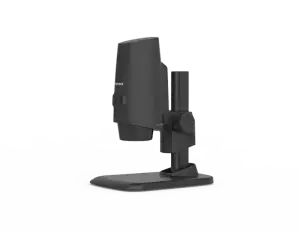

Tmetrics T20

Smart 3D microscope with 16X-160X Optical system

8mm Diagonal FOV
1920 x1080 Resolution
3.75μm×3.75μm Pixel Size
60fps@2MP Frame Rate
HDMI Data interface
