Features

• 248.6nm Excitation, Random Polarization
• Spectrograph: 200 mm Czerny Turner with dual computer controlled 3600 g/mm (Raman) and 300, 600 or 1200 g/mm (fluorescence) holographic gratings
• Raman Resolution: < 8 cm^-1, 60 µm slit
• Detector: 3 stage TE cooled, back illuminated UV CCD array

Applications

• Deep UV resonance Raman spectroscopy
• Photoluminescence spectroscopy

Features

• Compact size
• High-sensitivity linear array sensor
• Covering ultraviolet-visible, near infrared range (200~ 1000 nm)
• Supports USB connectivity
• Easy for industrial integration and control.

Applications

• Absorption, transmittance, and reflectance detection in ultraviolet, visible, and near-infrared range
• Detection of light source and laser wavelength
• LIBS – analysis of soil and minerals for geological testing and mining-related work
• Online monitoring of water quality and environmental protection – organic matter and oxygen content in water
• Flue gas – Monitoring and identification of flue gas emission components

Features

• High-performance area array back-illuminated CCD sensor (optimized for the ultraviolet band)
• High-speed USB
• Industrial, laboratory and scientific research applications
• High flexibility (optional range of 180- 1100 nm)
• High resolution
• High signal-to-noise ratio

Applications

• Absorption, transmittance and reflectance detection
• Light source and laser wavelength detection
• Fluorescence spectrum analysis
• Raman spectroscopy – petrochemical monitoring, food additive testing

Features

• High quantum efficiency, 92%peak@650nm, 80%@250nm.
• High signal-to-noise ratio: extremely low dark noise under long integration time, signal-to-noise ratio as high as 1000:1.
• Integrated refrigeration: long exposure weak signals are clearly detected and have strong environmental adaptability.
• Low noise, high speed circuit: USB3.0.
• Compact structure and easy integration.

Applications

• Absorption, transmittance and reflectance detection
• Light source and laser wavelength detection
• Fluorescence spectrum analysis
• Raman spectroscopy – petrochemical monitoring, food additive testing

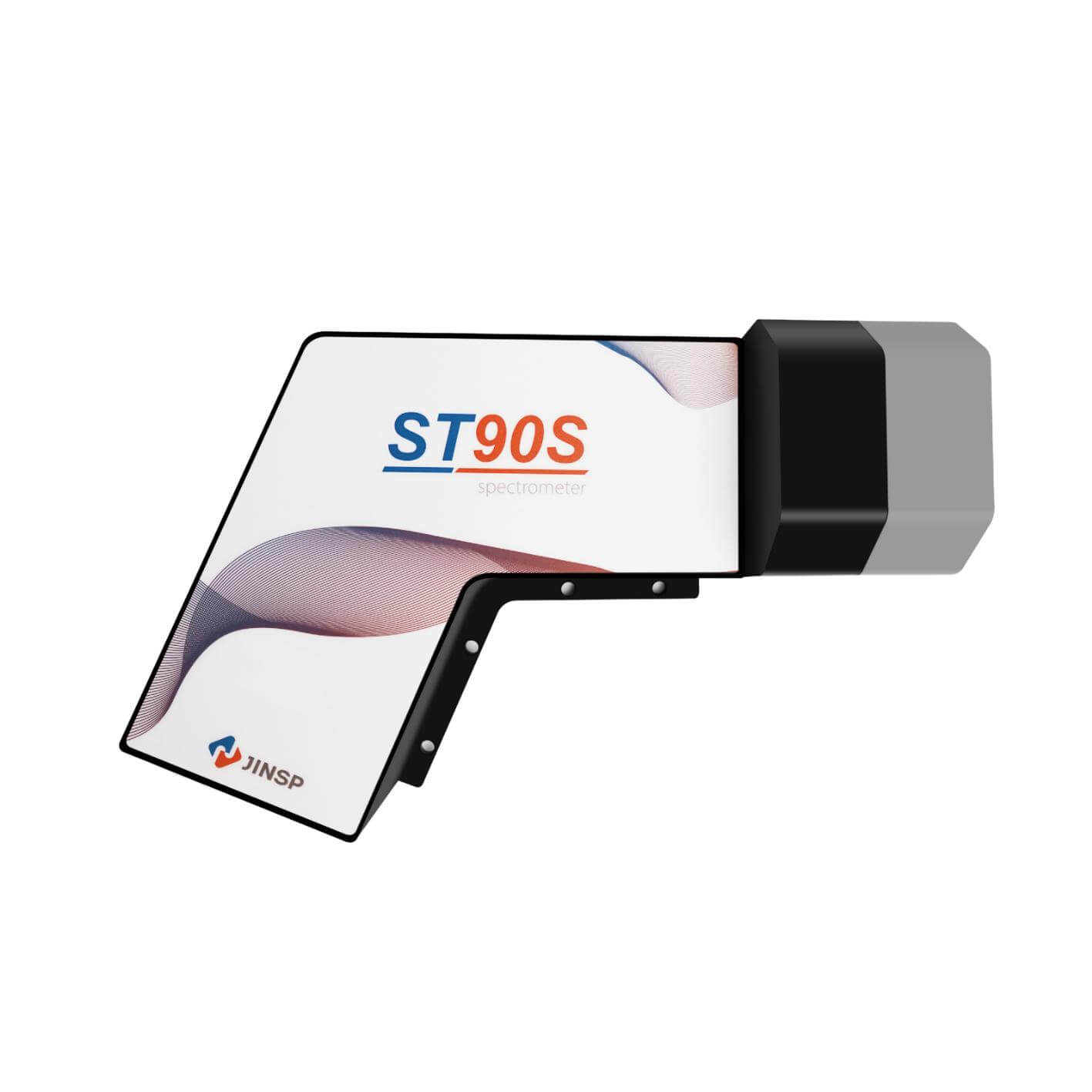

Features

• VPH grating, diffraction efficiency reaches 90%
• Zero aberration design, diffraction-limited resolution
• Compatible with various PI and Andor scientific research cryogenic cameras, extremely low dark current noise
• High-throughput design, numerical aperture 0.25
• Compatible with SMA905 optical fiber and Φ10mm multi- core optical fiber interface, supporting multi-channels
• High stability for laboratory and industrial applications

Applications

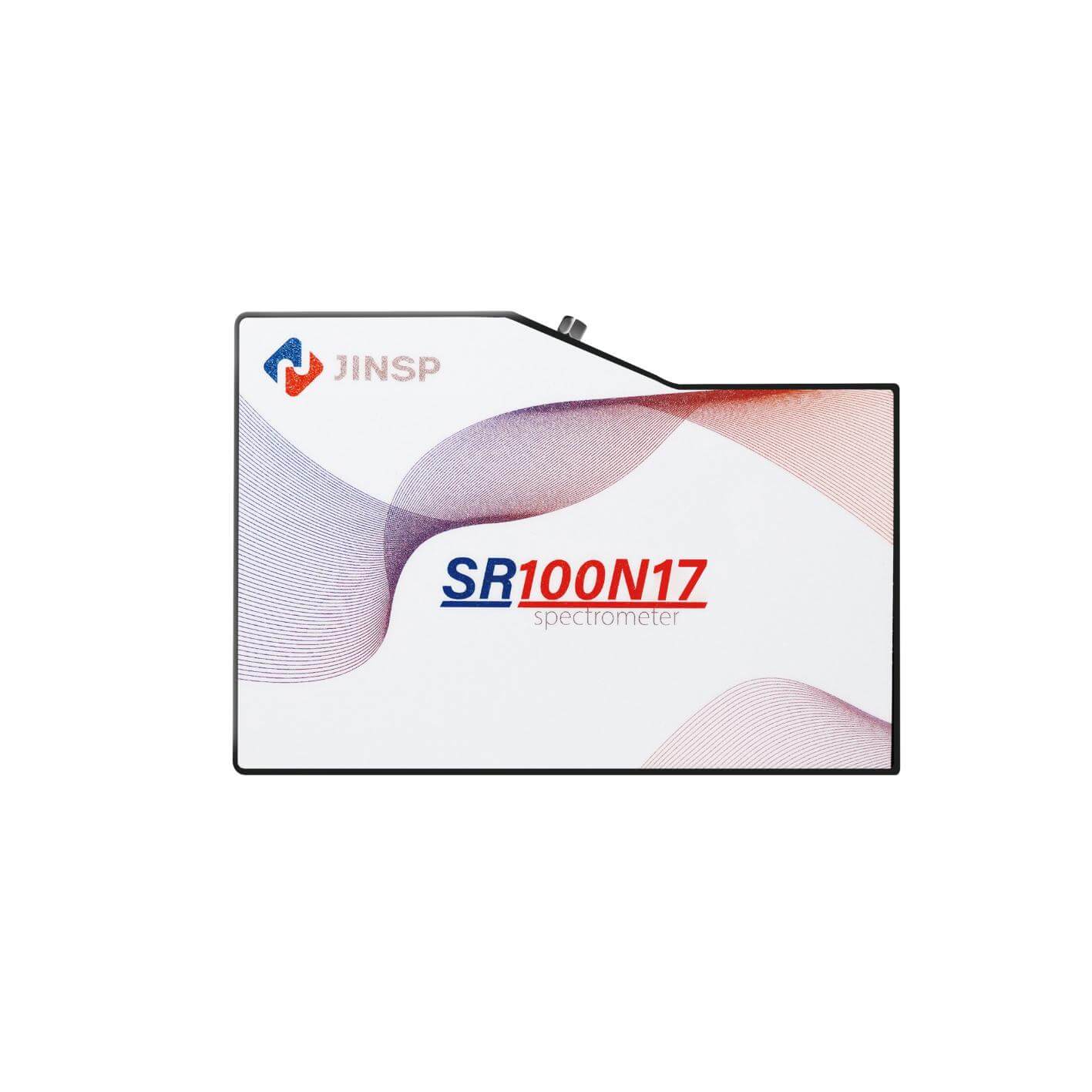

Features

• Small size and lightweight.
• Gold-coated lens surface for high near-infrared reflectance efficiency.
• Compatible with USB or UART to output measured spectral data, easy to integrate.
• Compitable with SMA905 optical fiber input to obtain free space light.
• Adopts on-chip cooling technology and configures low-noise signal processing circuit, effectively suppress dark current noise and improve spectral signal-to-noise ratio (SR100N&SR50N).

Applications

• Water content measurement, wastewater testing
• Grain and feed quality testing
• Measurement of fats, oils, proteins, fibers, etc.
• Measurement of the composition of drug mixtures.
